Sw-Motech MSS.11.484.10001.S Aluminum Skid Plate For Triumph Tiger 1200 (2012-)

Sw-Motech’s MSS.11.484.10001.S Aluminum Skid Plate Engine Guard is made specifically for Triumph Explorer 1200 & Explorer 1200 XC (2012-2015), Tiger Explorer XR, XRx & XRt (2016-current) & Tiger Explorer XCx & XCa (2016-current).

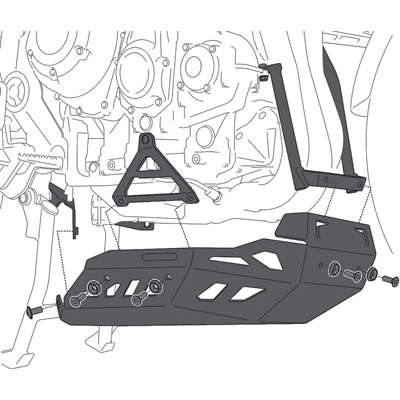

Install a SW-MOTECH aluminum skid plate engine guard for the Triumph Explorer for maximum undercarriage protection. Heavy duty 4 mm thick alloy plate is fully welded into a single structural unit to protect the vulnerable exhaust system, oil pan and other low hanging components. This essential skid plate features flared sides for enhanced lateral protection complete with laser cut vents to keep air flowing and prevent heat build up. Time to change the oil? A drain plug access port allows you to expel spent oil quickly without the need to remove the entire skid plate. Installation is 100% bolt-on, so no drilling, cutting, welding, pouring concrete or any other modifications are required.

• High strength 4 mm thick aluminum
• Fully welded single structural unit
• Flared sides for enhanced lateral protection
• Safeguards vulnerable exhaust and oil pan
• Combine with  for maximum protection
• Complete motor coverage from front to back
• Protects against stones, roots and other debris
• Oil drain access port for easy maintenance without removal
• Laser cut ventilation keeps air flowing to reduce heat build up
• Integrates perfectly with factory headers and centerstand
• Brushed aluminum finish
• Designed and engineered in Germany

• SW-MOTECH aluminum skid plate
• Mounting hardware
• Installation instructions
