Evotech PRN014566-016309 Garmin Sat Nav Mount For Honda X-ADV (2021-)

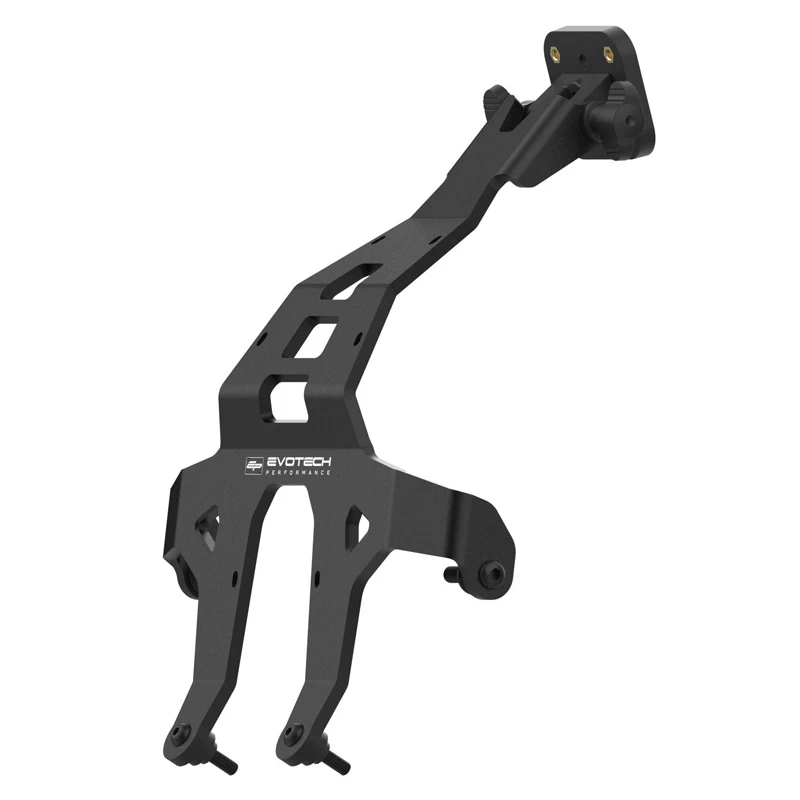

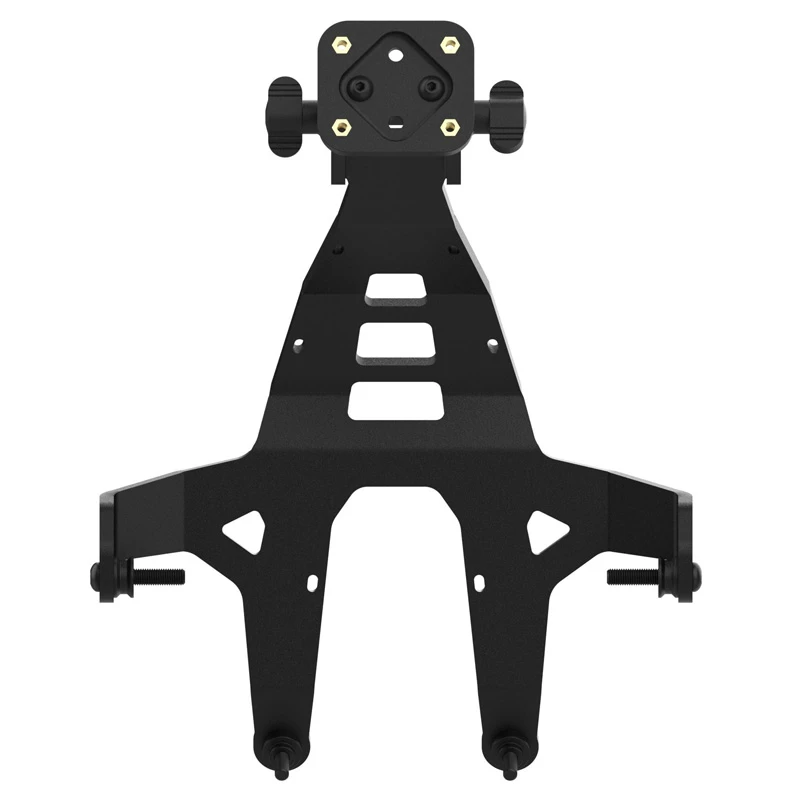

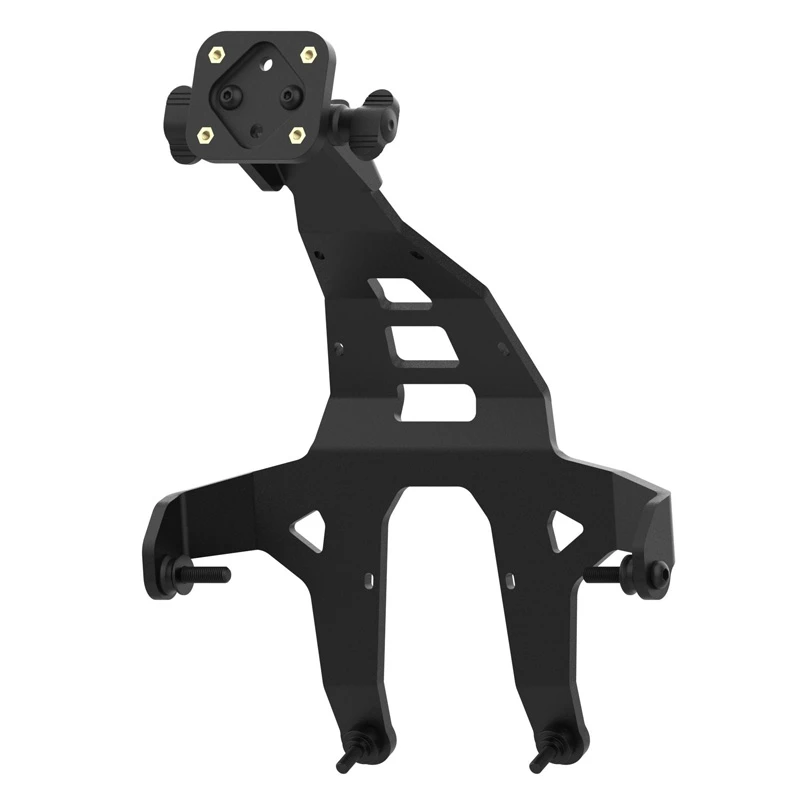

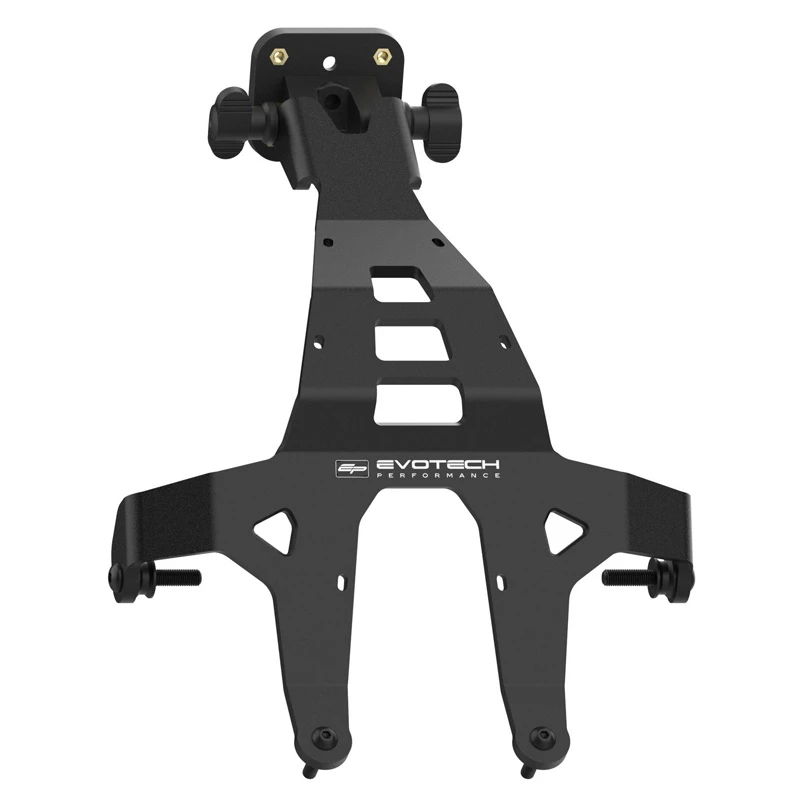

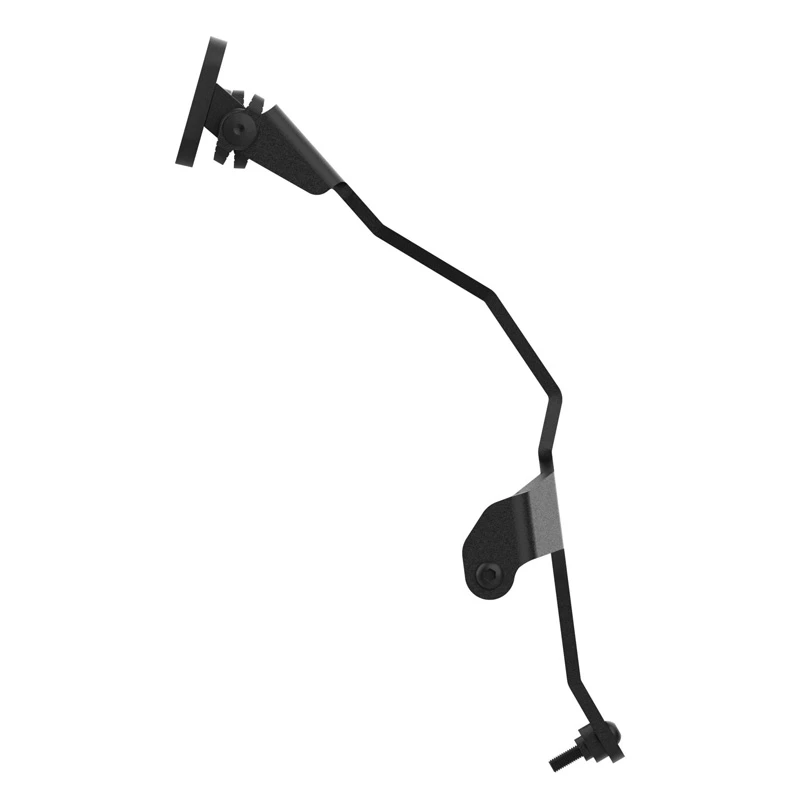

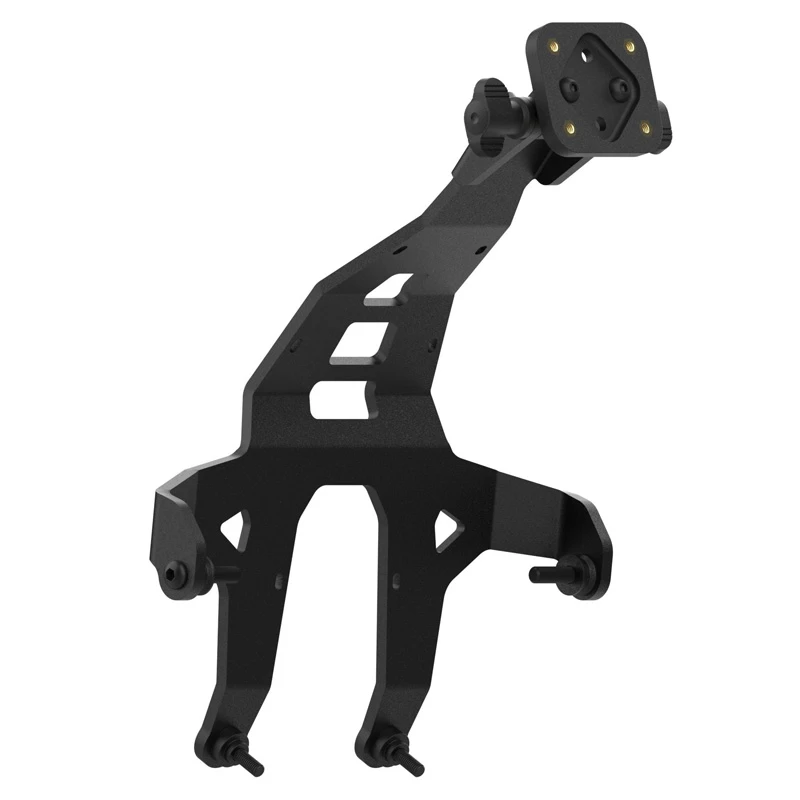

Evotech Performance’s PRN014566-016309 Garmin Compatible Sat Nav Mount is made specifically for Honda X-ADV (2021-current).

EP’s sat nav mount puts a Garmin motorcycle sat nav within the rider’s peripheral vision for easy access on a ride. Manufactured from lightweight aluminium and reinforced with black powder-coating, the bracket can be quickly installed using our online instructions. The bracket attaches to the screen support framework with all required fastenings included in the kit. For a final adjustment, the angle of the screen can be altered to fit the rider using the wing screws behind the mounting point.

N.B. Garmin motorcycle sat nav not included. Compatible with all Zumo models.

• Black powder-coated aluminum bracket with precision designed Garmin mounting point
• Screen angle can be modified using wing screws behind attaching point
• Attaches to the screen support framework
• No modification to your motorcycle required
• Fitting instructions can be found on this web page

• 1 x Main Plate
• 1 x Pivot Plate
• 1 x Quad Lock Sub Bracket
• 1 x Quad Lock Mounting Bracket
• 2 x M5 x 8mm Black Button Head Bolts
• 2 x P-clips (No.1)
• 2 x P-clips (No.2)
• 2 x P-clips (No.3)
• 2 x P-clips (No.4)
• 2 x Lobe Screw
• 2 x Locking Washer
• 2 x M5 Black Washer
• 2 x M4 x 5mm Black Button Head Bolts
• Sub Kit:
• 1 x Rubber Bung
• 2 x M6 x 30 Black Button Head Bolt
• 2 x M5 x 25 Black Button Head Bolt
• 2 x Spacer
